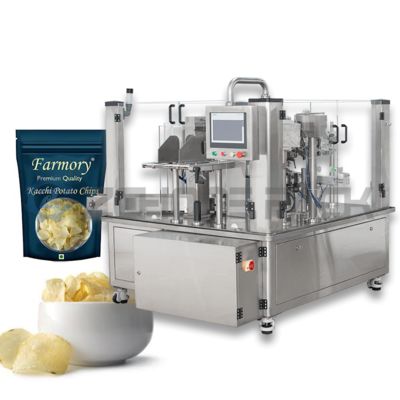

Potato Chip Packaging Machine for Nitrogen-Filled, Vacuum-Effective, Multifunctional Pre-made Bags for Puffed Food

Potato Chip Packaging Machine for Nitrogen-Filled, Vacuum-Effective, Multifunctional Pre-made Bags for Puffed Food

A "pre-made bag potato chip packaging machine" is a very common and critical piece of equipment in the food packaging industry. It refers to an automated machine that uses pre-made, pre-printed bags (i.e., pre-made bags) to weigh, fill, and seal potato chips.

I. What is a pre-made bag potato chip packaging machine?

Unlike a "form-fill-seal" bagging machine, a pre-made bag packaging machine does not manufacture the bags itself. Instead, it uses bags with three or four side seals already produced by a professional bag manufacturer. The advantages of this packaging method are:

Beautiful packaging: Pre-made bags typically utilize high-quality printing techniques (such as gravure printing), resulting in more vibrant and complex designs.

High packaging speed: Because on-site bag making is eliminated, packaging speed is typically higher, making it suitable for large-scale production.

Various bag types: These machines can accommodate a variety of special bag types, including stand-up pouches, zipper bags, and custom-shaped bags.

II. Core Workflow

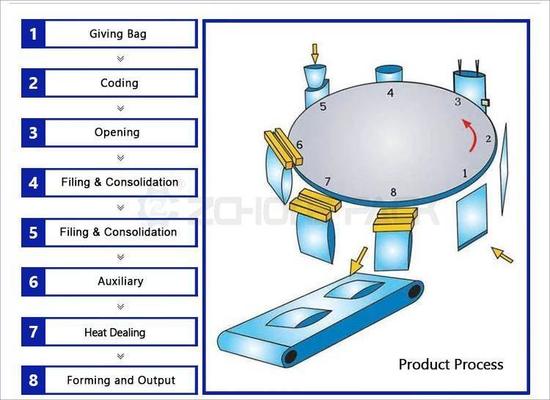

A typical pre-made bag potato chip packaging machine operates as follows:

Bagging: A robotic arm or suction cup device accurately removes a pre-made bag from the bag storage.

Bag Opening: A clamp grips the bag opening on both sides and opens it using air blowing or suction cups.

Filling: Simultaneously with the bag opening, an upstream multi-head combination weigher accurately weighs the potato chips to a specified weight.

The potato chips are quickly and accurately poured into the opened bag through a filling funnel.

Degassing: Before sealing, the machine removes excess air from the bag through vibration or compression to prevent crushing of the chips during transport and maintain a flat package.

Sealing: A heat sealer heats and pressurizes the bag opening to complete the seal. For zipper bags, the zipper is also sealed first.

Shaping and Output: After sealing, the bag is released and transported via a conveyor belt. It may also pass through cooling and shaping devices to achieve a more crisp appearance.

Inspection and Rejection: Throughout the entire process, a visual inspection system may check whether the bag opening is fully open, the seal is intact, and the date/batch number is legible. Unqualified products are automatically rejected.

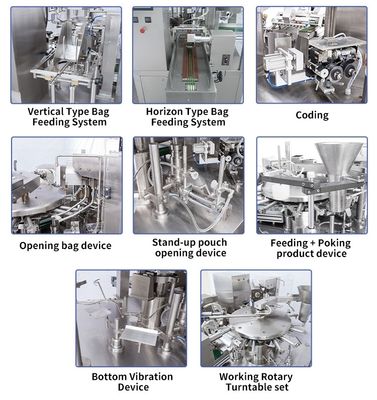

III. Main Components of the Equipment

Automatic Bagging Mechanism: Responsible for the stable and high-speed feeding of pre-made bags.

Bag Opening Device: Ensuring reliable bag opening every time is key to efficiency.

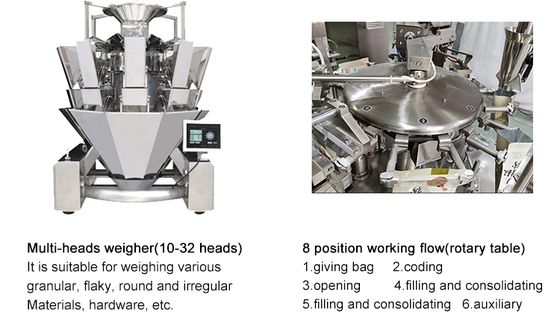

Multi-Head Combination Weigher: One of the "brains" of the packaging machine, it utilizes multiple weighing hoppers to achieve high-precision weighing at high speeds.

Filling System: Guides the chips into the bag, reducing debris and dust.

Heat Sealing System: The core actuator, whose temperature, pressure, and time control directly impact seal quality.

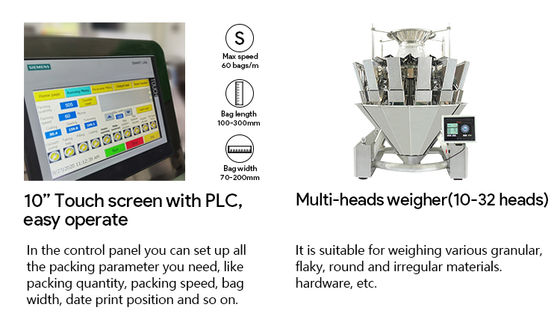

PLC Control System: The central nervous system of the entire equipment, coordinating the operation of various components and allowing the operator to set parameters.

Inspection Systems: These systems, such as checkweighers, metal detectors, and visual inspection systems, are used for quality control and product safety.

IV. Key Features and Advantages

High Precision: The combination weigher typically achieves a weighing accuracy of ±0.5-1 gram.

High Efficiency: A wide range of speeds is available, ranging from dozens to hundreds of bags per minute, depending on the number of workstations and the degree of automation.

Flexibility: By replacing the gripper and mold, it can accommodate pre-made bags of varying sizes and shapes.

High Automation: The entire process, from bag removal to finished product delivery, is fully automated, significantly reducing manual labor.

Excellent Shelf Life: A nitrogen flushing system displaces air from the bag before sealing, refilling it with nitrogen to effectively extend the shelf life of the potato chips and prevent them from crushing.

Machine Specification:

(We can provide you with exclusive customized services according to your needs!)
